Overview

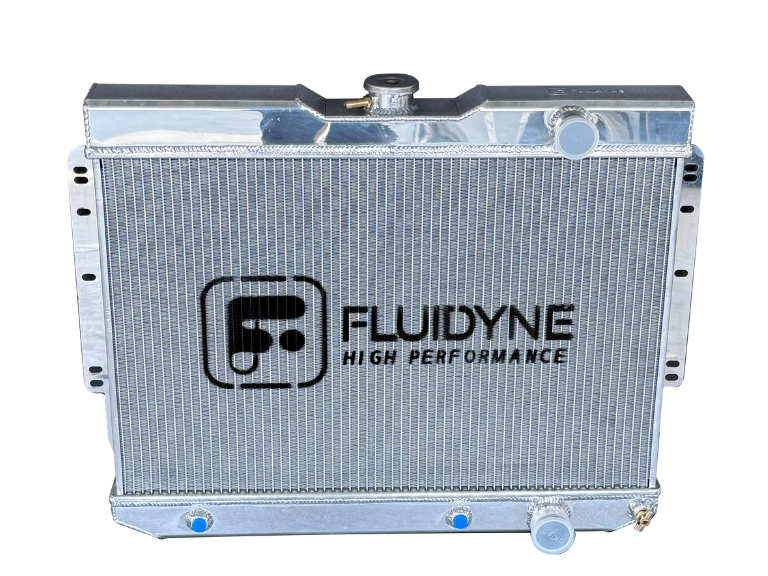

3-row automatic polished aluminum radiator with transmission cooler for the 1960-1965 GM Chevy, 28x21.
Fitment
1960-1965 GM Chevy
Specifications
- Rows: 3
- Passes: Single pass
- Transmission cooler: Yes
- Overall dimensions: 28″ L x 21.5″ H x 3″ D
- Core dimensions: 24.7″ L x 16.2″ H x 2.4″ D
- Tube size: 0.75″
- Inlet diameter: 1.5″
- Outlet diameter: 1.75″
- Inlet side: Driver
- Outlet side: Passenger
- Material: Aluminum
- Finish: Mirror Polished
- Fins per inch: 16 or more
- Weight: 24 lbs
- Radiator cap: Billet
