Overview

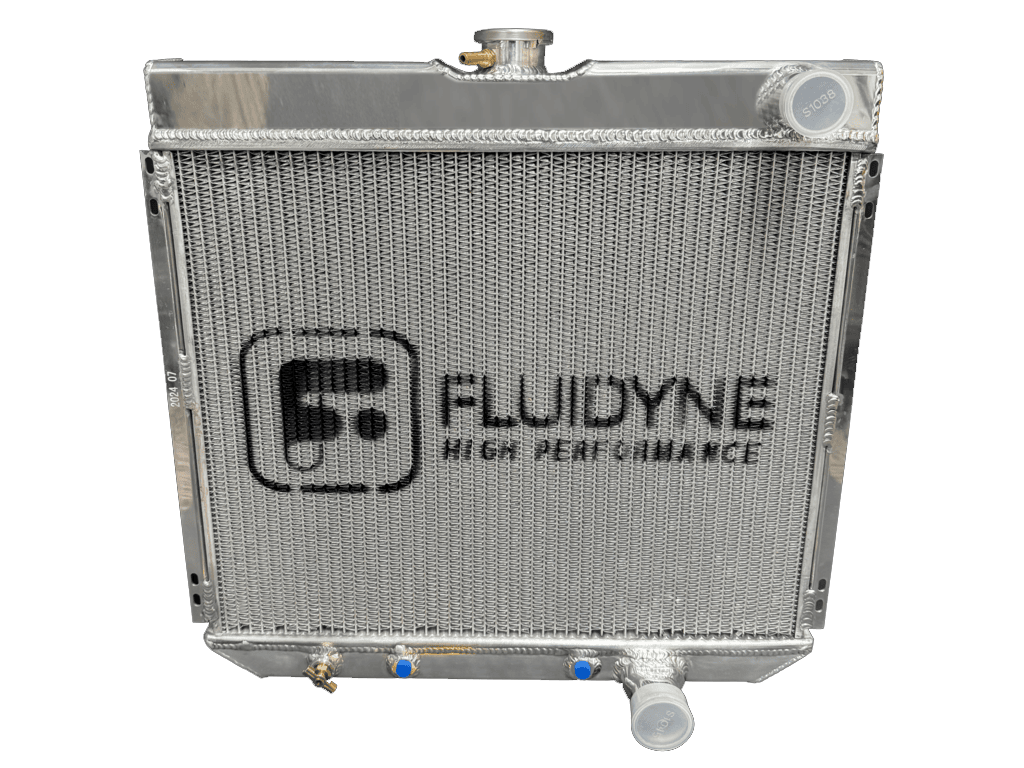

4-row automatic polished aluminum radiator with transmission cooler for 1963-1970 Ford Fairlane and 500, 22x21.
Fitment
1963-1970 Ford Fairlane, 500
Specifications
- Rows: 4
- Passes: Single pass
- Transmission cooler: Yes
- Overall dimensions: 22.2″ L x 21″ H x 3.1″ D
- Core dimensions: 19.6″ L x 18.9″ H x 2.8″ D
- Tube size: 0.5″
- Inlet diameter: 1.5″
- Outlet diameter: 1.75″
- Inlet side: Passenger
- Outlet side: Driver
- Material: Aluminum
- Finish: Mirror Polished
- Fins per inch: more than 11
- Weight: 24 lbs
- Radiator cap: Billet
