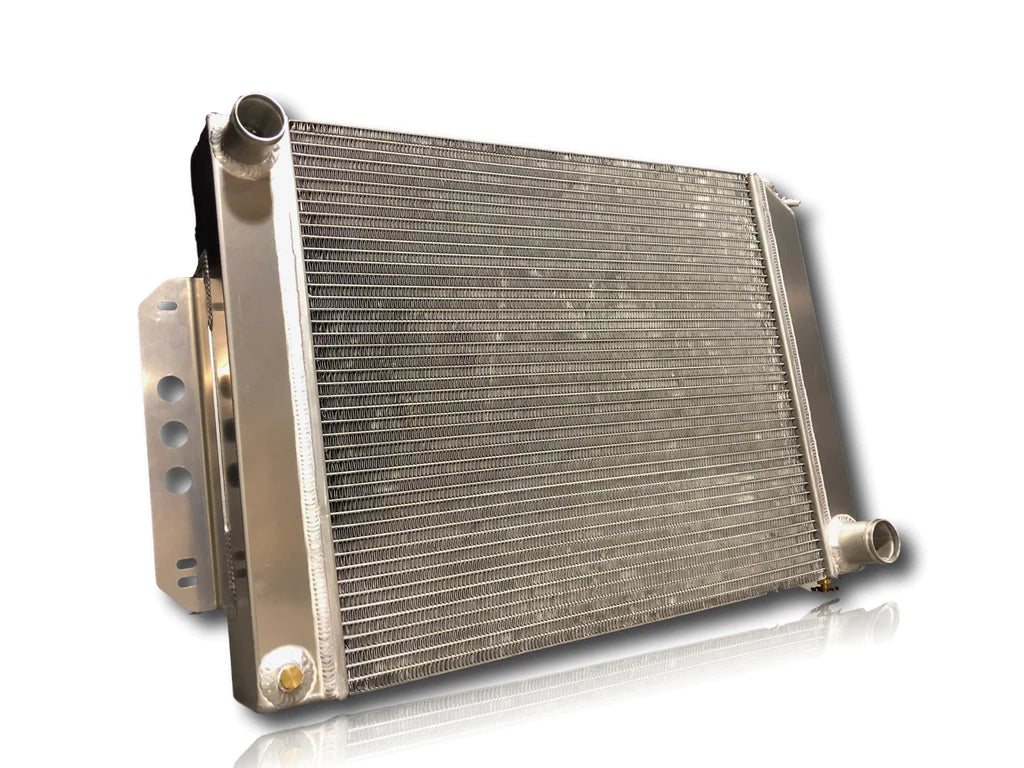

1967-1969 Firebird, Camaro 5-Row Aluminum Radiator - 67-69 Firebird/Camaro 5-Row Radiatror - Auto

Overview

5-row single pass aluminum radiator for the 1967-1969 Chevy Camaro and Firebird, automatic, with transmission cooler.

Construction

Five rows of ½″ tubes in a single pass design. At least 16 fins per inch and aluminum tanks thicker than .090″ for less warpage and better leak resistance.

Fitment

1967-1969 Firebird, Camaro

Specifications

• Passes: Single pass
• Transmission cooler: Yes
• Overall dimensions: 26″ L x 18.5″ H x 3.5″ D
• Core dimensions: 21″ L x 18.2″ H x 3″ D
• Tube size: 0.5″
• Inlet diameter: 1.5″
• Outlet diameter: 1.75″
• Inlet side: Driver
• Outlet side: Passenger
• Material: Aluminum
• Finish: Natural
• Fins per inch: 16 or more
• Weight: 16lbs
• Radiator cap: No
