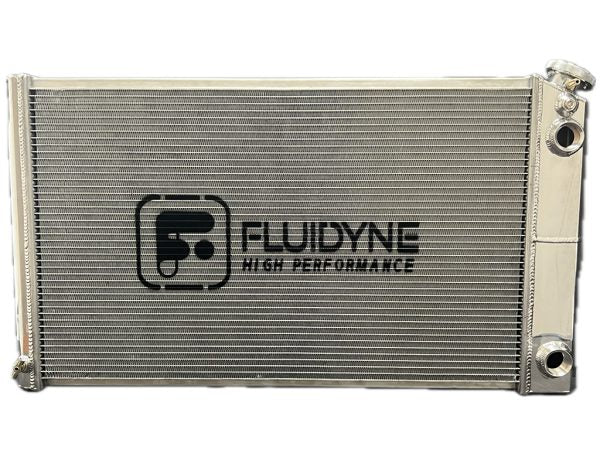

1968-1972 GM A-Body, 1973-1987 Chevy/GMC Truck Dual Pass LS Swap 3 Row Radiator 33"x19"

Overview

Dual pass 3-row polished aluminum LS swap radiator for the 1968-1972 GM A-Body and the 1973-1987 Chevy/GMC trucks, 33x19.

Construction

Dual pass design that puts the inlet and outlet on the passenger side, aligned with LS water pumps. Uses Fluidyne LFT (Laminar Flow Technology) tubes with a proprietary fin design and at least 16 fins per inch. Mirror-polished aluminum with tank walls thicker than .090″. MFC modular inlet and outlet fittings with -16ORB ports, with provisions for steam ports.

Fitment

1968-1972 GM A-Body (Chevelle, El Camino, Malibu, Monte Carlo); 1973-1987 Chevy/GMC trucks. LS swap.

Specifications

• Rows: 3
• Passes: Dual pass
• Overall dimensions: 33″ L x 18.5″ H x 3″ D
• Inlet side: Passenger
• Outlet side: Passenger
• Material: Aluminum
• Finish: Mirror Polished
• Fins per inch: 16 or more
• Weight: 24 lbs
• Radiator cap: Billet
• Transmission cooler: No
