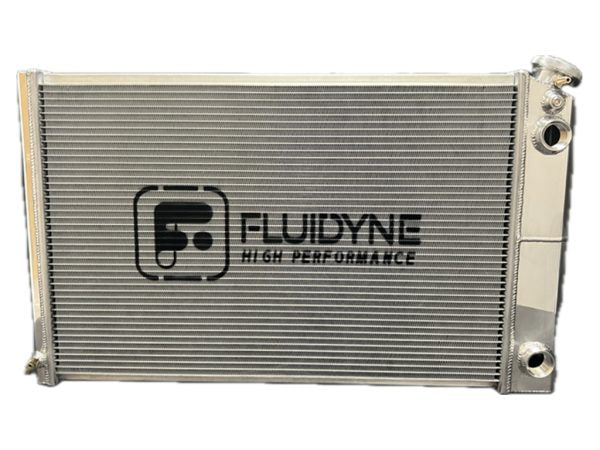

1970-1981 Camaro/Firebird; 1978-1987 GM G-Body Dual Pass-LS Swap 3 Row Radiator 31"x19"

Overview

Dual pass 3-row polished aluminum LS swap radiator for the 1970-1981 Camaro and Firebird and the 1978-1987 GM G-Body, 31x19.

Construction

Dual pass design that puts the inlet and outlet on the passenger side, aligned with LS water pumps. Uses Fluidyne LFT (Laminar Flow Technology) tubes with a proprietary fin design and at least 16 fins per inch. Mirror-polished aluminum with tank walls thicker than .090″. MFC modular inlet and outlet fittings with -16ORB ports, with provisions for steam ports.

Fitment

1970-1981 Camaro / Firebird; 1978-1987 GM G-Body. LS swap.

Specifications

• Rows: 3
• Passes: Dual pass
• Overall dimensions: 31″ L x 18.5″ H x 2.75″ D
• Core dimensions: 26.25″ L x 17″ H x 2.2″ D
• Inlet side: Passenger
• Outlet side: Passenger
• Material: Aluminum
• Finish: Mirror Polished
• Fins per inch: 16 or more
• Weight: 24 lbs
• Radiator cap: Billet
• Transmission cooler: No
