Overview

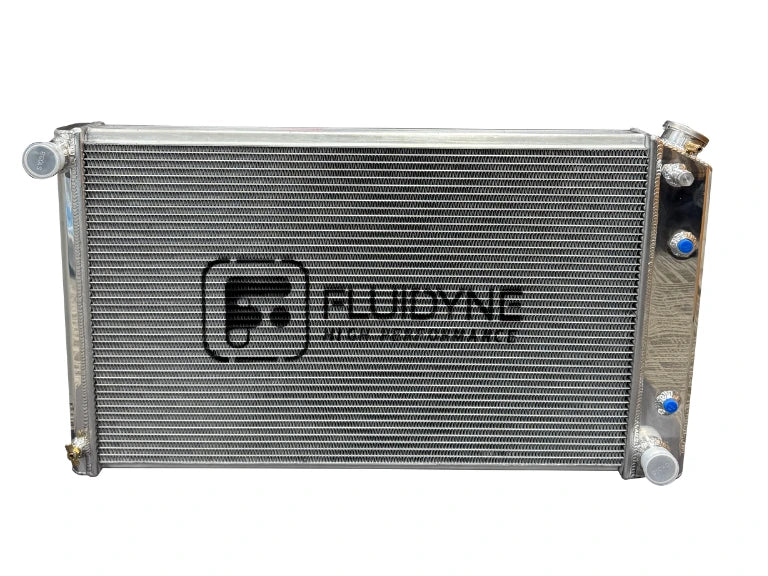

4-row automatic polished aluminum radiator with transmission cooler for the 1970-1981 GM Pontiac Firebird and Chevy, 33x20.
Fitment
1970-1981 GM Pontiac Firebird, Chevy
Specifications
- Rows: 4
- Passes: Single pass
- Transmission cooler: Yes
- Overall dimensions: 33″ L x 18.7″ H x 3.1″ D
- Core dimensions: 27.6″ L x 16.9″ H x 2.8″ D
- Tube size: 0.5″
- Inlet diameter: 1.5″
- Outlet diameter: 1.5″
- Inlet side: Driver
- Outlet side: Passenger
- Material: Aluminum
- Finish: Mirror Polished
- Fins per inch: more than 11
- Weight: 24 lbs
- Radiator cap: Billet
