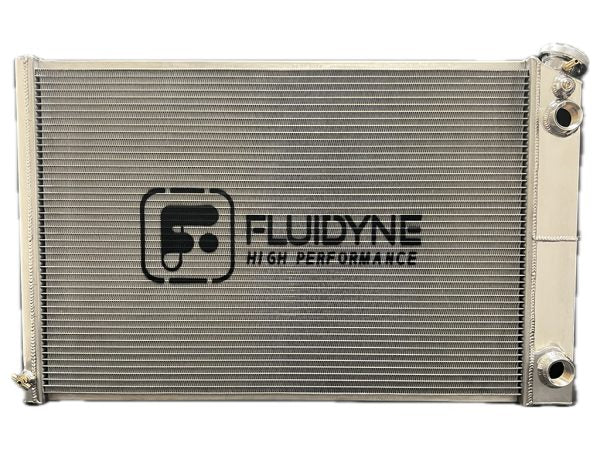

1973-1987 Chevy/GMC C10 Trucks Dual Pass-LS Swap 3 Row Radiator 33"x21"

Overview

Dual pass 3-row polished aluminum LS swap radiator for the 1973-1987 Chevy and GMC C10 trucks, 33x21.

Construction

Dual pass design that puts the inlet and outlet on the passenger side, aligned with LS water pumps. Uses Fluidyne LFT (Laminar Flow Technology) tubes with a proprietary fin design and at least 16 fins per inch. Mirror-polished aluminum with tank walls thicker than .090″. MFC modular inlet and outlet fittings with -16ORB ports, with provisions for steam ports.

Fitment

1973-1987 Chevy/GMC C10 trucks. LS swap.

Specifications

• Rows: 3
• Passes: Dual pass
• Overall dimensions: 33″ L x 20.25″ H x 3″ D
• Core dimensions: 28.25″ L x 18.75″ H x 2.25″ D
• Inlet side: Passenger
• Outlet side: Passenger
• Material: Aluminum
• Finish: Mirror Polished
• Fins per inch: 16 or more
• Weight: 24 lbs
• Radiator cap: Billet
• Transmission cooler: No
