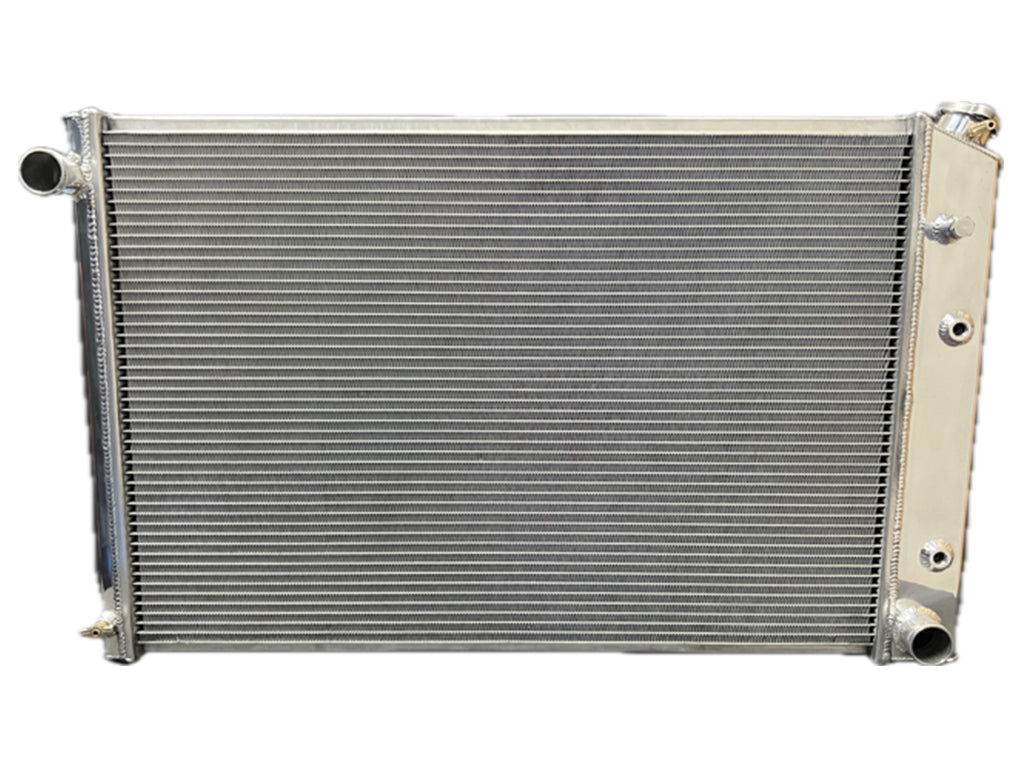

1973-1991 Chevrolet/GMC Blazer, Jimmy, R/V, Suburban Automatic 3 Row Radiator 33"x20"

Overview

3-row polished aluminum radiator for the 1973-1991 Chevrolet and GMC Blazer, Jimmy, R/V and Suburban, 33x20, with transmission cooler.

Construction

Uses Fluidyne LFT (Laminar Flow Technology) tubes in 3 rows with a proprietary fin design and at least 16 fins per inch. Mirror-polished aluminum with tank walls thicker than .090″ for rigidity and leak resistance.

Fitment

1973-1991 Chevrolet/GMC Blazer, Jimmy, R/V, Suburban

Specifications

• Rows: 3
• Passes: Single pass
• Transmission cooler: Yes
• Overall dimensions: 33.1″ L x 20.5″ H x 2.5″ D
• Core dimensions: 28.25″ L x 18.8″ H x 2.2″ D
• Inlet diameter: 1.5″
• Outlet diameter: 1.57″
• Inlet side: Driver
• Outlet side: Passenger
• Material: Aluminum
• Finish: Mirror Polished
• Fins per inch: 16 or more
• Radiator cap: Billet
