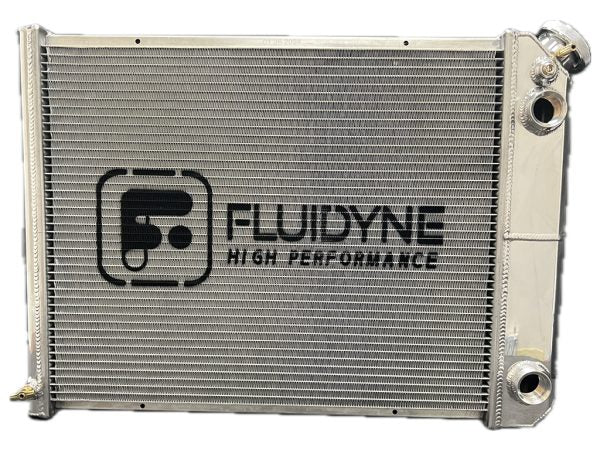

1979-1993 Ford Mustang LS Swap Dual Pass 3 Row Radiator, 29"x19"

Overview

Dual pass 3-row LS swap radiator for the 1979-1993 Ford Mustang, built with ½” LFT tubes. The dual pass design puts the inlet and outlet on the passenger side, aligned with LS water pumps. MFC modular inlet and outlet fittings with -16ORB ports, with provisions for steam ports.

Fitment

1979-1993 Ford Mustang, 1979-1986 Mercury Capri

Specifications

• Rows: 3
• Passes: Dual pass
• Transmission cooler: Yes
• Overall dimensions: 29.25″ L x 19.125″ H x 3″ D
• Core dimensions: 24″ L x 17″ H x 2.25″ D
• Inlet side: Passenger
• Outlet side: Passenger
• Material: Aluminum
• Finish: Mirror Polished
• Fins per inch: 16 or more
• Weight: 24 lbs
• Radiator cap: Billet

Fitment Table
