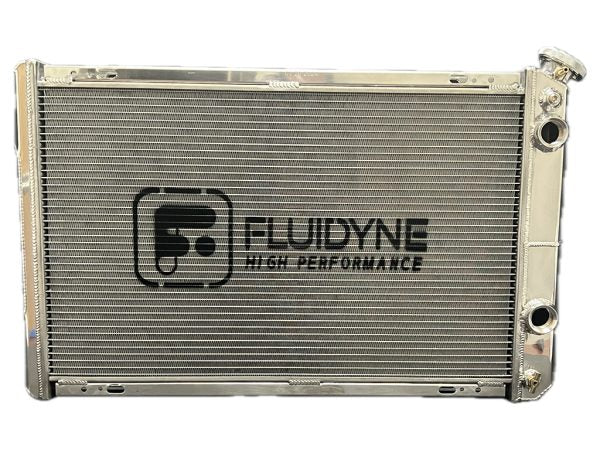

1982-1992 Camaro/Firebird Dual Pass-LS Swap 3 Row Radiator 30"x20"

Overview

Dual pass 3-row polished aluminum LS swap radiator for the 1982-1992 Camaro and Firebird, 30x20.

Construction

Dual pass design that puts the inlet and outlet on the passenger side, aligned with LS water pumps. Uses Fluidyne LFT (Laminar Flow Technology) tubes with a proprietary fin design and at least 16 fins per inch. Mirror-polished aluminum with tank walls thicker than .090″. MFC modular inlet and outlet fittings with -16ORB ports, with provisions for steam ports.

Fitment

1982-1992 Camaro, Firebird. LS swap.

Specifications

• Rows: 3
• Passes: Dual pass
• Overall dimensions: 30″ L x 20″ H x 3″ D
• Inlet side: Passenger
• Outlet side: Passenger
• Material: Aluminum
• Finish: Mirror Polished
• Fins per inch: 16 or more
• Weight: 24 lbs
• Radiator cap: Billet
• Transmission cooler: No

Fitment Table
