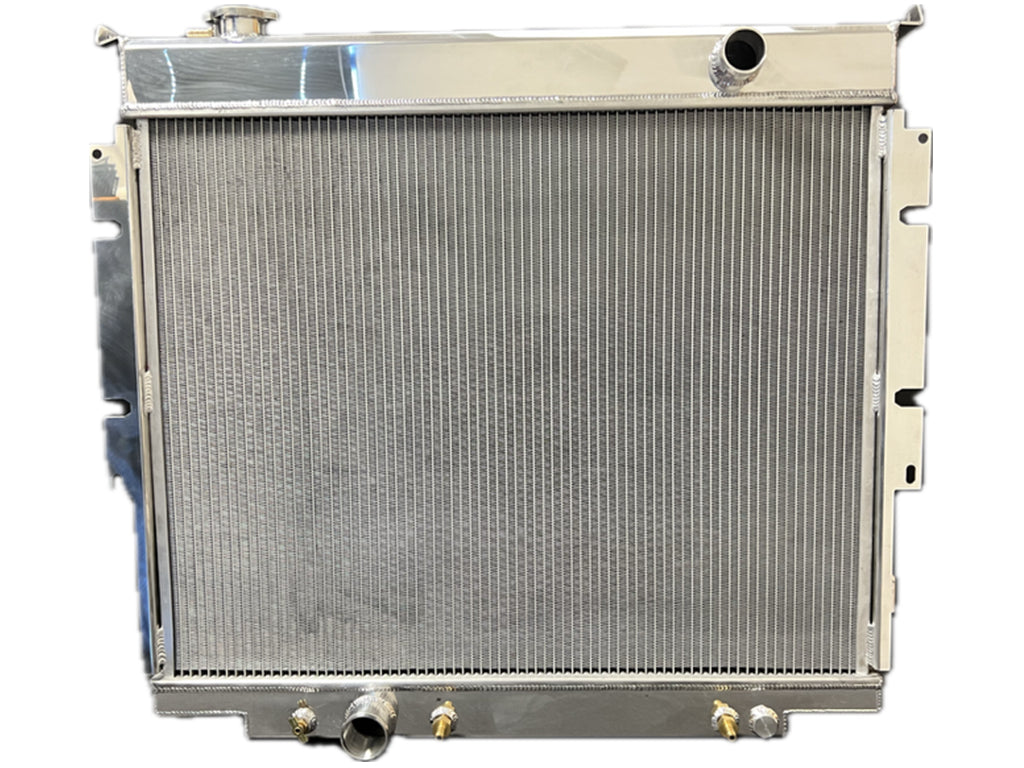

1983-1994 F-Series 3 Row Radiator, Manual and Automatic, 34"x31"

Overview

3-row polished aluminum radiator with transmission cooler for the 1983-1994 Ford F-Series, 34x31.

Construction

Uses Fluidyne LFT (Laminar Flow Technology) tubes in 3 rows with a proprietary fin design and at least 16 fins per inch. Mirror-polished aluminum with tank walls thicker than .090″ for rigidity and leak resistance.

Fitment

1983-1994 Ford F-Series

Specifications

• Rows: 3
• Passes: Single pass
• Transmission cooler: Yes
• Overall dimensions: 33.75″ L x 30.875″ H x 3″ D
• Core dimensions: 23.75″ L x 30.125″ H x 2.5″ D
• Inlet diameter: 1.75″
• Outlet diameter: 2″
• Inlet side: Passenger
• Outlet side: Driver
• Material: Aluminum
• Finish: Mirror Polished
• Fins per inch: 16 or more
• Weight: 24 lbs
• Radiator cap: Billet
