1987-2006 Jeep YJ,TJ, Auto,LS Swap,Polished,26''x 24'' 3 Row, Billet cap, GM LS Swap

Overview

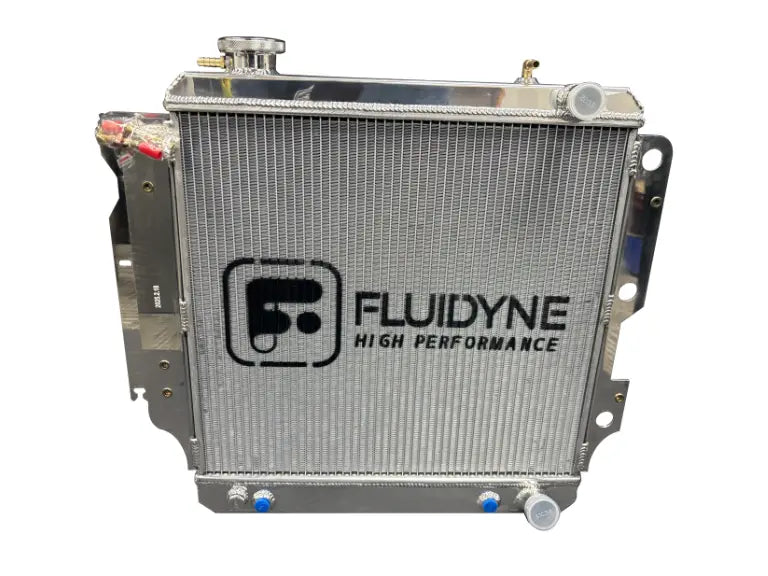

3-row polished aluminum radiator for the 1987-2006 Jeep Wrangler YJ and TJ with a GM LS V8 swap.

Construction

Uses Fluidyne LFT (Laminar Flow Technology) tubes, engineered to promote laminar coolant flow through the core. The core has a minimum of 16 fins per inch and the aluminum tanks have walls thicker than .090″. All seams are TIG welded. Includes a billet aluminum radiator cap and is compatible with factory transmission cooler connections.

Fitment

1987-2006 Jeep Wrangler YJ / TJ. GM LS V8 swap (4.8L, 5.3L, 6.0L, LS1, LS2, LS3 and variants).

Specifications

• Rows: 3
• Passes: Single pass
• Core dimensions: 20″ L x 18.1″ H x 2.2″ D
• Inlet side: Passenger
• Outlet side: Passenger
• Finish: Mirror Polished
• Fins per inch: 16 or more
• Weight: 16 lbs
• Radiator cap: Billet
