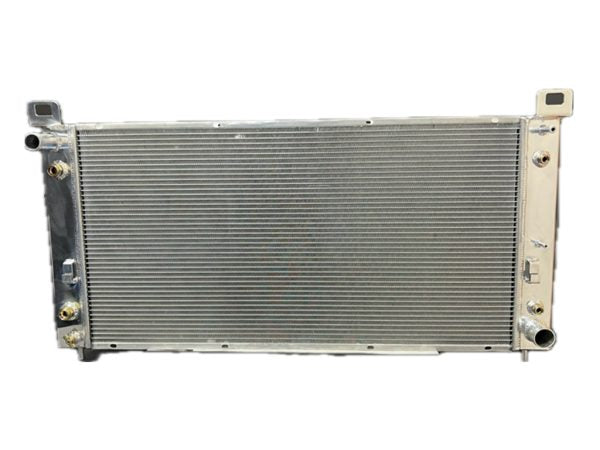

1999-2011 GM Chevy Trucks 3 Row Radiator Automatic 34"x17"

Overview

3-row automatic polished aluminum radiator with transmission cooler for the 1999-2011 GM Chevy trucks, 34x17.

Construction

Uses Fluidyne LFT (Laminar Flow Technology) tubes in 3 rows with a proprietary fin design and at least 16 fins per inch. Mirror-polished aluminum with tank walls thicker than .090″ for rigidity and leak resistance.

Fitment

1999-2011 GM Chevy trucks. Applications include Chevrolet Silverado, Suburban, Tahoe and Avalanche, GMC Sierra and Yukon, Cadillac Escalade (4.3L V6, 4.8L, 5.3L, 6.0L, 6.2L engines).

Specifications

• Rows: 3
• Passes: Single pass
• Transmission cooler: Yes
• Overall dimensions: 41.6″ L x 21.4″ H x 5.9″ D
• Core dimensions: 34″ L x 17″ H x 2″ D
• Inlet diameter: 1.33″
• Outlet diameter: 1.57″
• Inlet side: Driver
• Outlet side: Passenger
• Material: Aluminum
• Finish: Mirror Polished
• Fins per inch: 16 or more
• Weight: 24 lbs
• Radiator cap: Billet
