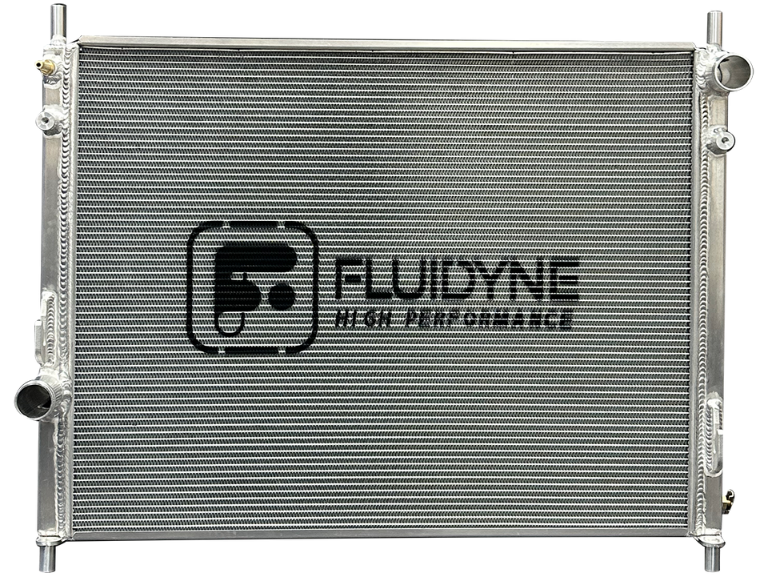

2015-2023 Ford Mustang 3 Row Aluminum Radiator - 15-23 Mustang GT, GT-350, 350R, 3-row 5mm, Triple pass

Overview

3-row all-aluminum radiator from the Fluidyne Pro-Line series, made for the 2015-2023 Ford Mustang.

Construction

Built with ½” tubes, 5mm fins, 16 fins per inch or more and tank walls thicker than .090″. The tube design uses laminar flow technology to reduce micro cavitation bubbles and improve coolant circulation. Thicker tank walls mean less warpage and more resistance to leaks. Triple pass design: the coolant makes three passes through the core before returning to the water pump.

Fitment

2015-2023 Ford Mustang (GT, GT-350, 350R, 3-row 5mm, Triple pass)

Specifications

• Rows: 3
• Passes: Triple pass
• Transmission cooler: No
• Overall dimensions: 29″ L x 20.5″ H x 2.5″ D
• Core dimensions: 25.5″ L x 20.2″ H x 1.75″ D
• Tube size: 0.5″
• Inlet diameter: 1.5″
• Outlet diameter: 1.5″
• Inlet side: Passenger
• Outlet side: Driver
• Material: Aluminum
• Finish: Natural
• Fins per inch: 16 or more
• Weight: 16lbs
• Radiator cap: No
