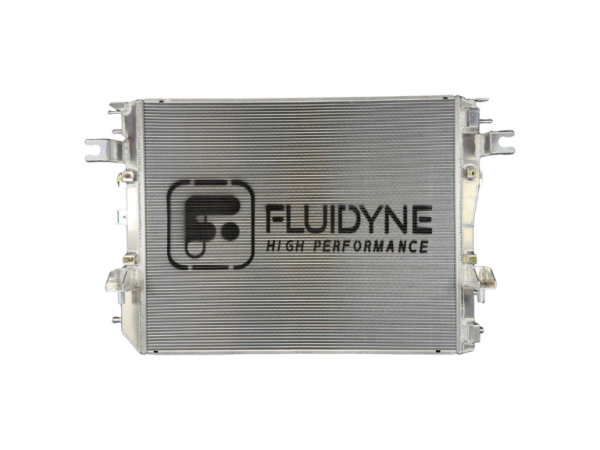

2021-2024 Dodge TRX Ram Extruded Tube Aluminum Radiator

Overview

Extruded-tube aluminum radiator made for the Hellcat-powered 2021-2024 Ram TRX.

Construction

One-piece die-extruded tube core: no sonic welds along the tubes and thicker tube walls. The tanks are TIG welded with heavier filler rod on every joint. Mounting brackets and tabs are precision CNC-cut and fully TIG welded.

Fitment

2021-2024 Ram TRX (supercharged 6.2L Hellcat V8)

Specifications

• Overall dimensions: 35.75″ L x 23″ H x 6.75″ D
• Core dimensions: 27.5″ L x 22.75″ H x 1.8″ D
• Inlet diameter: 1.5″
• Outlet diameter: 1.6″
• Material: Aluminum
• Weight: 39 lbs
• Core type: Extruded tube
