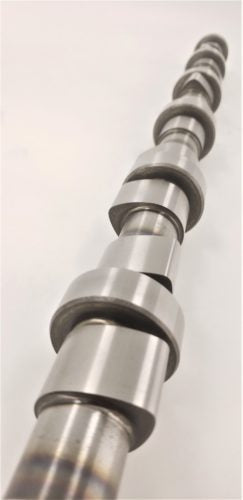

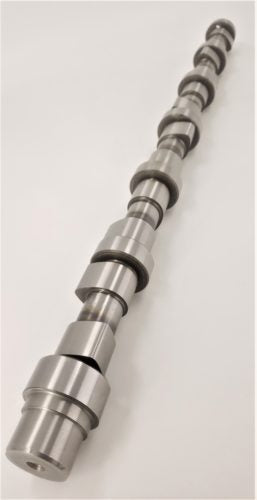

207/220-110 High-Performance Cummins Camshaft
Designed for high-performance Cummins builds that need strong power through the upper RPM range. Performs best from approximately 2,000 to 4,800 RPM and should be installed on a 99–101° intake centerline.
Excellent choice for engines equipped with cylinder heads that continue to flow efficiently at higher valve lift. Best suited for combinations with increased compression, high-flow cylinder heads, larger turbochargers, and supporting fuel-system upgrades.
For automatic-transmission applications, a 2,500 RPM or higher stall converter is recommended.
Upgraded valve springs and pushrods are required.
Piston-to-Valve Clearance Requirements
- 24-valve engines: minimum .080-inch valve reliefs required
- 12-valve engines: minimum .100-inch valve reliefs required
Camshaft Specifications
Intake: Lift .3600 in. (valve lift .4968 in.), Duration 207°, Centerline 99°
Exhaust: Lift .3600 in. (valve lift .4824 in.), Duration 220°, Centerline 121°
Recommended For: high-RPM street and competition builds, ported/high-flow cylinder heads, higher-compression engines, larger single or compound turbocharger combinations.
This is an aggressive performance camshaft intended for properly built engines with adequate piston clearance and supporting modifications.
