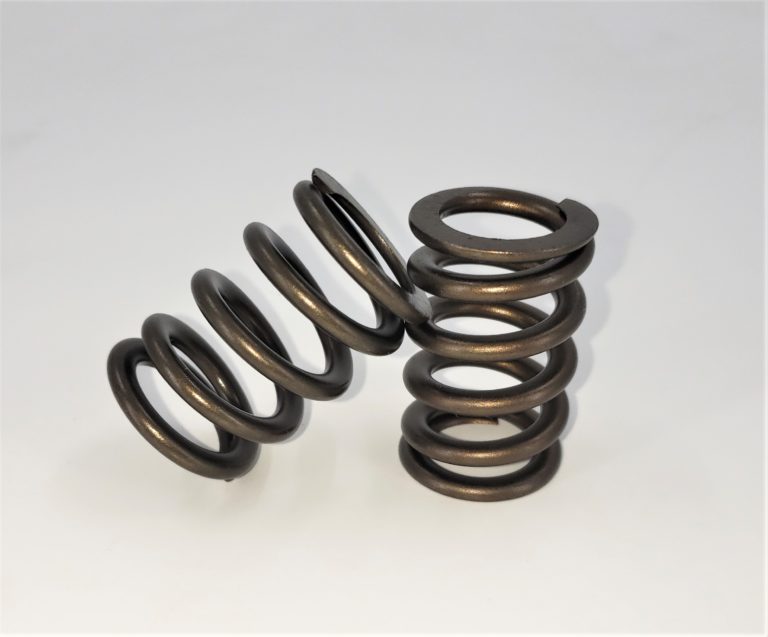

24v Competition spring 110#

24-Valve Competition Valve Springs — 110 lb Seat Pressure

Valve springs for Cummins builds that live above 4,500 rpm. At 110 lb of seat pressure they keep the valves controlled to 6,500 rpm and hold them shut against the boost and drive pressure a competition engine makes.

Key Features

• 110 lb seat pressure — valve control at elevated boost and horsepower
• Rated to 6,500 rpm — for track and competition builds, not daily driving
• Made in the USA

Required Setup

Spring pressure this high needs a valvetrain built for it. Running these on cast parts wears them out fast.

• Steel camshaft required — cast cams are not recommended at this pressure
• Steel tappets required — see Hamilton 1.45" DLC-coated steel tappets
• Above 4,500 rpm Hamilton specifies their tool steel retainers to prevent retainer failure
• Retainers and locks are not included

Not the Right Spring?

For a street truck or tow rig staying under 4,500 rpm, the 103 lb 24-valve spring set is the correct choice — these competition springs add valvetrain load with no benefit at street rpm.

Fitment

1998.5–2007 Dodge Ram 5.9L Cummins 24-valve and 2007.5–2018 Ram 6.7L Cummins competition engines running a compatible steel camshaft.
