THIS IS NOT A LIFT PUMP! This is an air separation/filtration system that utilizes your factory lift pump.
The FASS Drop-In Series Diesel Fuel System is engineered to be the most effective filtration solution for the 3.0L Duramax. Backed by a limited lifetime warranty, it protects against issues caused by fuel contamination. If you drive a GMC, Chevrolet or Cadillac with a 3.0L Duramax and want better fuel filtration, improved reliability and injector protection - without an external frame-mounted pump but with simple installation - this is the perfect solution.

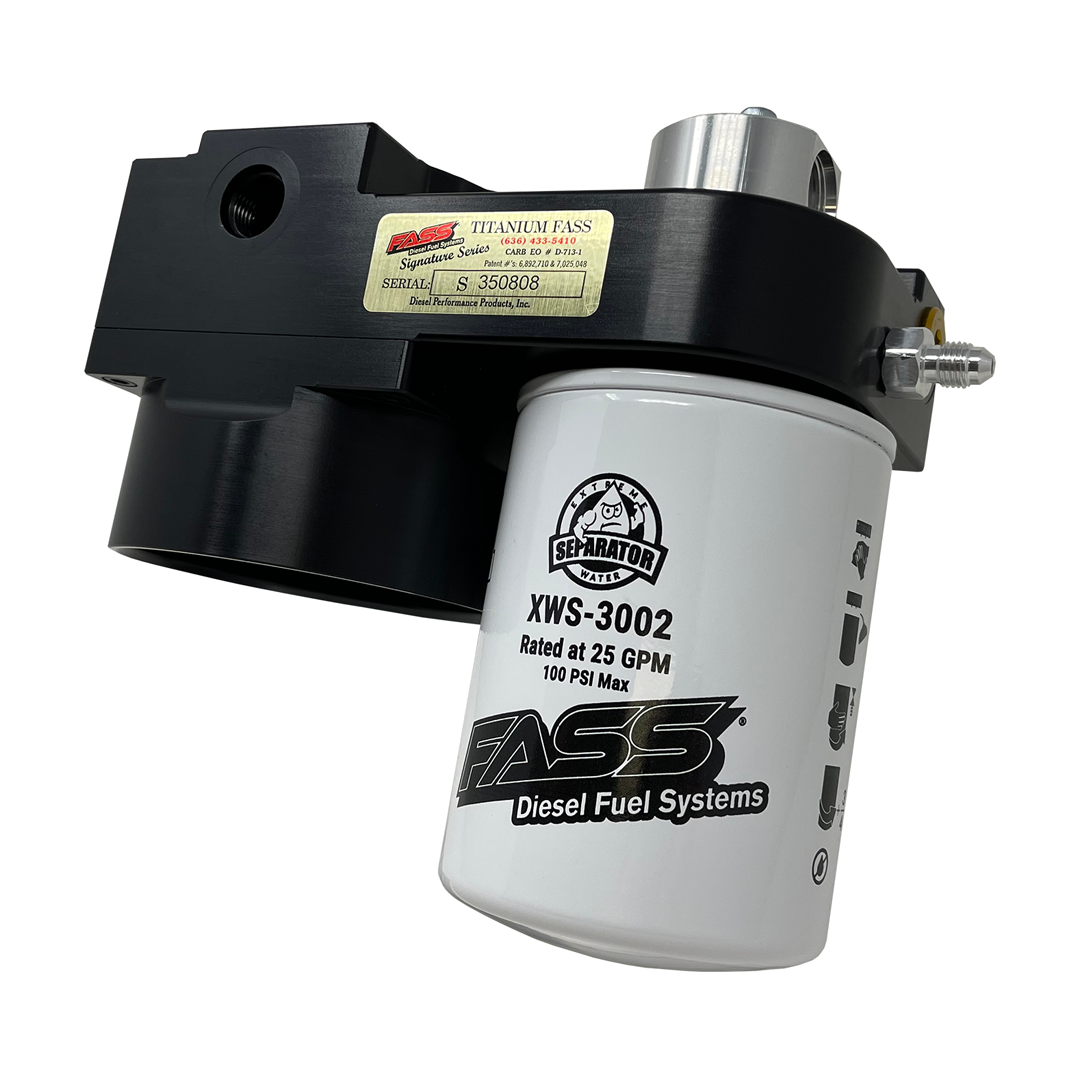

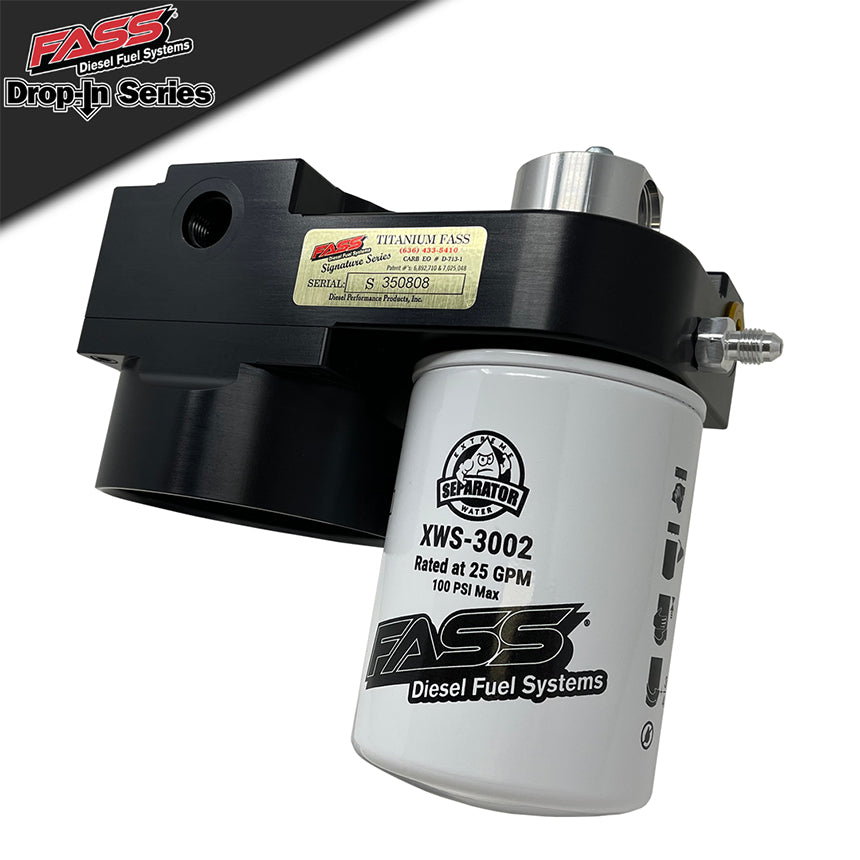

The FASS Drop-In Series System for the LM2/LZ0 Duramax replaces the plastic OEM single filter housing with a precision, in-house designed and CNC'd 6061-T6 billet aluminum dual filter housing made in the USA. This system uses the OEM water separator element together with our 2-micron Extreme Water Separator. Keeping the OEM water separator element lets the water-in-fuel (WIF) sensor work correctly, warning you before water reaches the clean side of the filter. Our Extreme Water Separator handles final filtration, capturing particulates down to 2 microns and removing over 99% of free and emulsified water, versus the 5-micron OEM rating.
Fitment
-
Pickups (DIFSL5P2001 + LZ0ADPT1001): 2019-2026 GM 1500-Series pickups with LM2 & LZ0 3.0L Duramax, all cab & box configurations.
-
SUVs (DIFSL5P2001 + LZ0ADPT2001): 2021-2026 SUV configurations with LM2 & LZ0 3.0L Duramax.
Note: Drop-In Fuel Systems are plug-and-play filtration upgrades and are not compatible with Fuel Sump Kits. The system retains the OEM in-tank fuel pump.
Reliability, Simplicity, Protection
-
Seamless Integration: works flawlessly with the factory fuel system on GMC, Chevrolet and Cadillac
-
Injector Protection: can triple the life of your injectors and injection pump
-
FASS Filtration: optimizes combustion, restores horsepower, maximizes MPG (results vary)
-
Limited Lifetime Warranty: register your FASS system for coverage
Advanced Filtration Technology
-
Water Separation: 3rd-party proven to eliminate over 99% of water
-
Air/Vapor Removal: eliminates entrained air and vapor that damage injection systems
-
2-Micron Absolute Microglass Filtration: removes smaller debris than OEM filters
Key Benefits
-
Improves Reliability: potentially triple the injection system life
-
Maximized Horsepower: improved fuel atomization and restored timing
-
Optimized MPG: more efficient combustion (results vary)
-
Peace of Mind: Extreme Water Separator acts as a fail-safe
-
Cold Weather Confidence: dependable starts in extreme cold
-
Cleaner Operation: reduces DPF regens and soot
-
Improves Fuel Lubricity: at least 10% improvement
Key Features
- Only drop-in 3.0L Duramax filtration system that retains the OEM water-in-fuel light
- Only drop-in 3.0L Duramax filtration system with air separation
- 100% drop-in installation; no drilling or modifications needed
- Retains factory in-tank lift pump
- Performance Radius Cuts (PRC): smoother internal fuel flow
- 2-micron absolute filtration rating: captures finer debris than OEM
- Removes over 99% of water: 3rd-party verified
- Patented air/vapor removal process
- Heater options available for cold weather
- Limited Lifetime Warranty (with registration)
What's Included
- (1) FASS Drop-In Series Air Separation/Filtration System
- (1) FASS XWS3002 Extreme Water Separator
- (1) Installation Kit including all necessary hoses, fittings, bracketry and hardware
