Overview

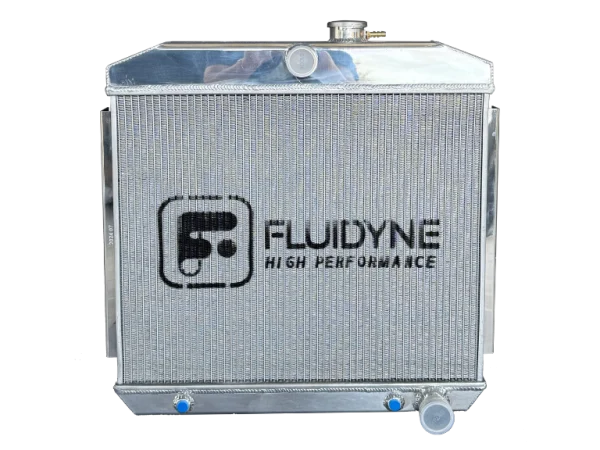

3-row automatic polished aluminum radiator with transmission cooler for GM Chevy, 24x23.
Fitment
GM Chevy, 24x23. Years and models are not specified; check size and mounting against your vehicle.
Specifications
- Rows: 3
- Passes: Single pass
- Transmission cooler: Yes
- Overall dimensions: 23.6″ L x 23.2″ H x 3.1″ D
- Core dimensions: 21.6″ L x 17.1″ H x 2.4″ D
- Tube size: 0.75″
- Inlet diameter: 1.5″
- Outlet diameter: 1.75″
- Inlet side: Driver
- Outlet side: Passenger
- Material: Aluminum
- Finish: Mirror Polished
- Fins per inch: 16 or more
- Weight: 24 lbs
- Radiator cap: Billet
