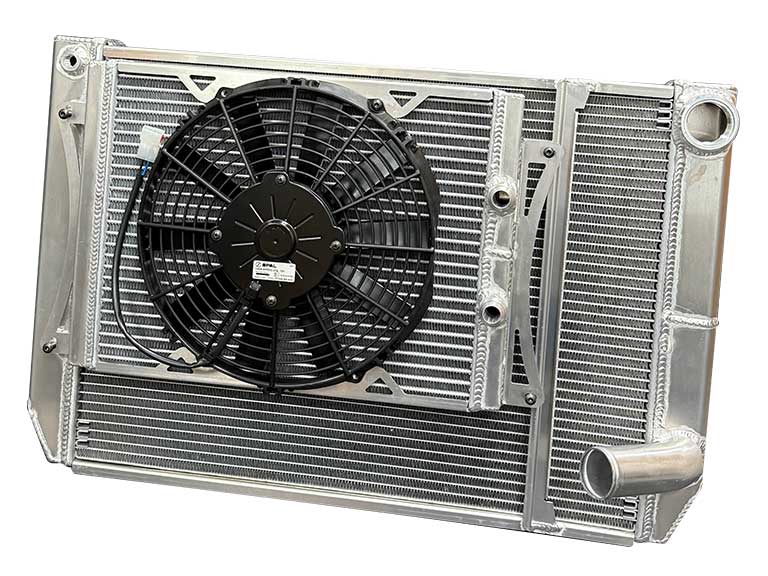

Super Late Model Triple Pass 3Row Aluminum Radiator, Ford, -20 ORB female upper, new design, Closed

Overview

V2 Ford Super Late Model 3-row triple pass aluminum radiator, radiator only.

Construction

Uses ½″ tubes (laminar flow design) with at least 16 fins per inch and aluminum tanks thicker than .090″. V2 upgrades over the original units: -20 ORB female inlet (use your own adapter, no cutting or welding), narrower 28 in width for clearance in a light crash, stronger tubes, newer fin design. Closed system with a 1/4″ NPT port.

Fitment

Ford Super Late Model (circle track)

Specifications

• Rows: 3
• Passes: Triple pass
• Overall dimensions: 27.99″ L x 18″ H x 2.25″ D
• Core dimensions: 23.31″ L x 17.24″ H x 1.77″ D
• Tube size: 0.51″
• Inlet diameter: 20ORB Female
• Outlet diameter: 1.75″
• Inlet side: Driver’s side
• Material: Aluminum
• Finish: Natural
• Fins per inch: 16 or more
• Weight: 12.79lbs
